Scheduling Workflows

This guide covers the different ways to schedule and execute workflows in Cyclonetix.

Manual Scheduling

Command Line Interface

Cyclonetix provides a CLI for scheduling workflows:

Schedule by Outcome

To schedule a workflow by specifying the desired outcome (final task):

./cyclonetix schedule-task <task_id>

Example:

./cyclonetix schedule-task deploy_model

This will automatically resolve all dependencies of deploy_model and execute them in the correct order.

Schedule a DAG

To schedule a predefined DAG:

./cyclonetix schedule-dag <dag_id>

Example:

./cyclonetix schedule-dag ml_training_pipeline

Schedule with Context

You can provide a context when scheduling:

./cyclonetix schedule-dag ml_training_pipeline --context production

Web UI

The Cyclonetix web UI provides a user-friendly way to schedule workflows:

  1. Navigate to the “Tasks” or “DAGs” page
  2. Find the task or DAG you want to schedule
  3. Click the “Schedule” button
  4. Configure any parameters or contexts
  5. Submit the form to start the execution

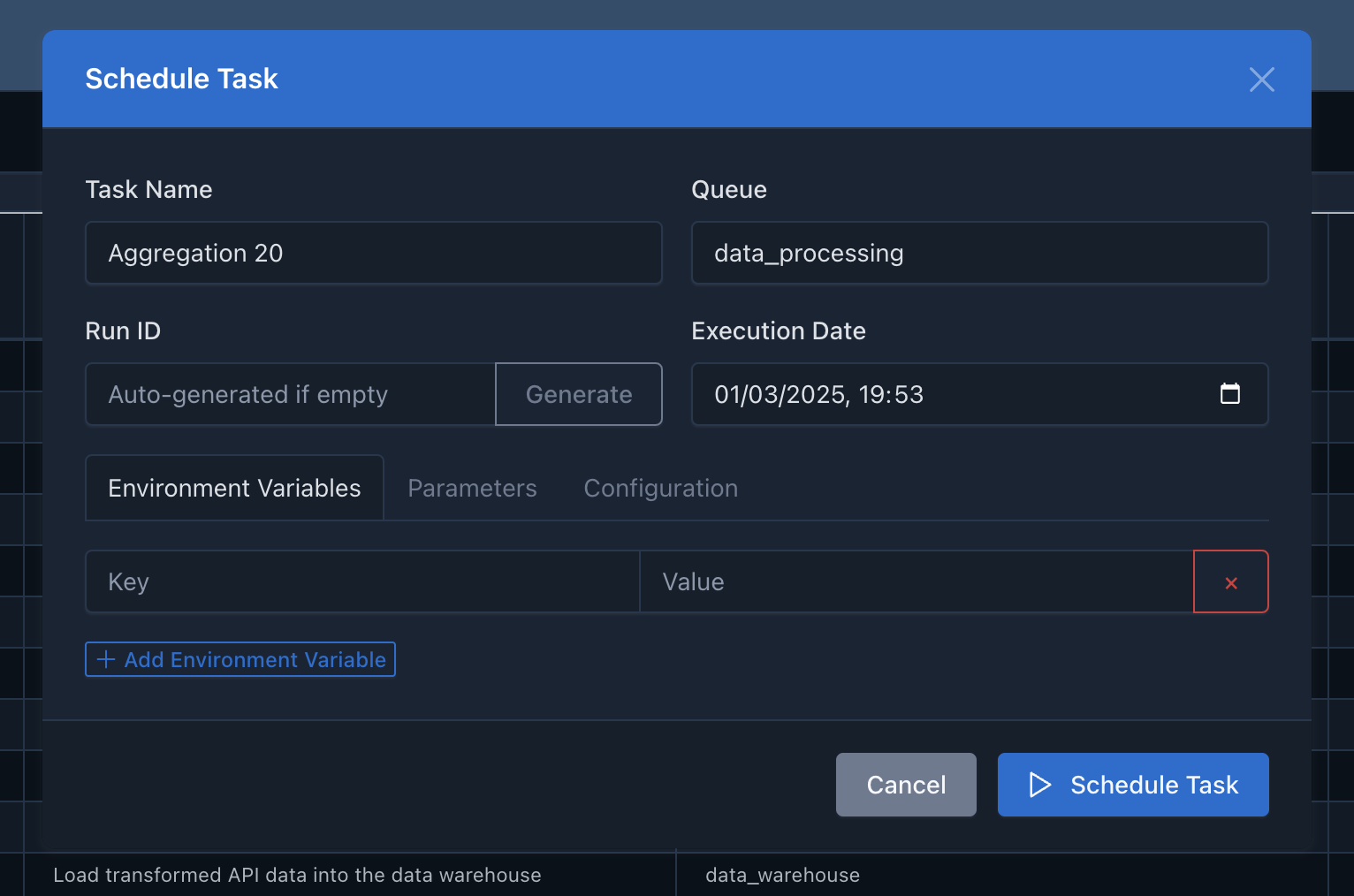

UI Scheduling

Automatic Scheduling

Time-Based Scheduling

Cyclonetix supports time-based scheduling similar to cron:

# In your DAG definition
schedule:
  cron: "0 5 * * *"        # Run daily at 5:00 AM
  timezone: "UTC"
  catchup: false           # Don't run missed executions

Common schedule patterns:

Description Cron Expression
Daily at midnight 0 0 * * *
Every hour 0 * * * *
Weekly on Monday 0 0 * * 1
Monthly on the 1st 0 0 1 * *

Event-Based Triggers

Cyclonetix can trigger workflows based on external events:

API Triggers

Trigger a workflow via the REST API:

curl -X POST http://your-cyclonetix-server:3000/api/schedule-task \
  -H "Content-Type: application/json" \
  -d '{"task_id": "process_data", "env_vars": {"SOURCE": "api_call"}}'

File Arrival

Configure a workflow to start when files arrive in a monitored location:

triggers:
  file_arrival:
    path: "/data/incoming/"
    pattern: "*.csv"
    wait_seconds: 60

Parameterized Execution

Passing Environment Variables

You can pass environment variables when scheduling a task or DAG:

./cyclonetix schedule-task generate_report \
  --env DATA_DATE=2023-11-01 \
  --env REPORT_TYPE=monthly

These variables will be available to the task command.

Overriding Parameters

Override task parameters at scheduling time:

./cyclonetix schedule-dag etl_pipeline \
  --param data_extraction.limit=5000 \
  --param data_loading.mode=incremental

Managing Executions

Monitoring Execution

Once scheduled, you can monitor the execution:

  1. Navigate to the “Running DAGs” page in the UI
  2. Select the execution you want to monitor
  3. View the DAG visualization with real-time status updates
  4. Access task logs and details

Cancelling Execution

To cancel a running execution:

  1. Find the execution in the UI
  2. Click “Cancel” and confirm
  3. All running tasks will be terminated, and pending tasks will not be executed

Rerunning Failed Tasks

If a task fails, you can rerun it:

  1. Navigate to the execution details
  2. Find the failed task
  3. Click “Rerun” to attempt execution again

Clearing Execution History

To clear execution history:

./cyclonetix clear-history --days 30

This removes execution records older than 30 days.

Advanced Scheduling

Backfilling

For time-based workflows, you can run executions for past time periods:

./cyclonetix backfill ml_training_pipeline \
  --start-date 2023-01-01 \
  --end-date 2023-01-31

This will create one execution per day in the specified range.

Parallel Execution

Control the number of parallel task executions:

./cyclonetix schedule-dag large_workflow --max-parallel 5

Dependency Overrides

Override normal dependency behavior for special cases:

./cyclonetix schedule-task final_step --ignore-dependencies
