Tasks and Dependencies

Tasks are the fundamental building blocks in Cyclonetix. Understanding how they work and how dependencies between them are managed is essential to effectively use the system.

Tasks

A task in Cyclonetix represents a single unit of work that needs to be executed. Each task has:

  • A unique identifier
  • A command to execute
  • Optional dependencies on other tasks
  • Optional parameters for customization
  • A specified queue for execution

Task Templates vs Task Instances

Cyclonetix distinguishes between task definitions and their execution instances:

  • Task Template: The immutable definition of a task, stored as YAML.
  • Task Instance: A specific execution of a task with its runtime state.

When a task is scheduled, Cyclonetix creates a Task Instance from the Task Template, generating a unique run ID for tracking.

Task Lifecycle

Each task goes through a series of states during its lifecycle:

  1. Pending: Task is defined but not yet scheduled
  2. Queued: Task is ready for execution and waiting in a queue
  3. Running: Task is currently being executed by an agent
  4. Completed: Task finished execution successfully
  5. Failed: Task execution failed

Task Definition YAML

Here’s an example of a task definition in YAML format:

id: "data_preprocessing"
name: "Data Preprocessing"
description: "Preprocess raw data for model training"
command: "python3 scripts/preprocess.py --input ${INPUT_FILE} --output ${OUTPUT_FILE}"
parameters:
  inputPath: "/data/raw"
  outputPath: "/data/processed"
  mode: "full"
dependencies:
  - "data_download"
queue: "data_processing"

Dependencies

Dependencies define the relationships between tasks, establishing the execution order.

Direct Dependencies

The most common form of dependency is a direct dependency where one task requires another to complete before it can start:

id: "model_training"
# ...
dependencies:
  - "data_preprocessing"

In this example, model_training will only start after data_preprocessing has successfully completed.

Parameterized Dependencies

Cyclonetix supports parameterized dependencies, allowing you to depend on a specific variant of a task:

id: "model_deployment"
# ...
dependencies:
  - "model_training:production"

This creates a dependency on the model_training task specifically when run with the production parameter set.

Dependency Resolution

When using outcome-based scheduling, Cyclonetix automatically resolves the full dependency chain:

  1. Identify the target task (the “outcome”)
  2. Recursively gather all dependencies
  3. Build a directed acyclic graph (DAG) representing the execution order
  4. Execute tasks in topological order, respecting dependencies

Dependency Graph Visualization

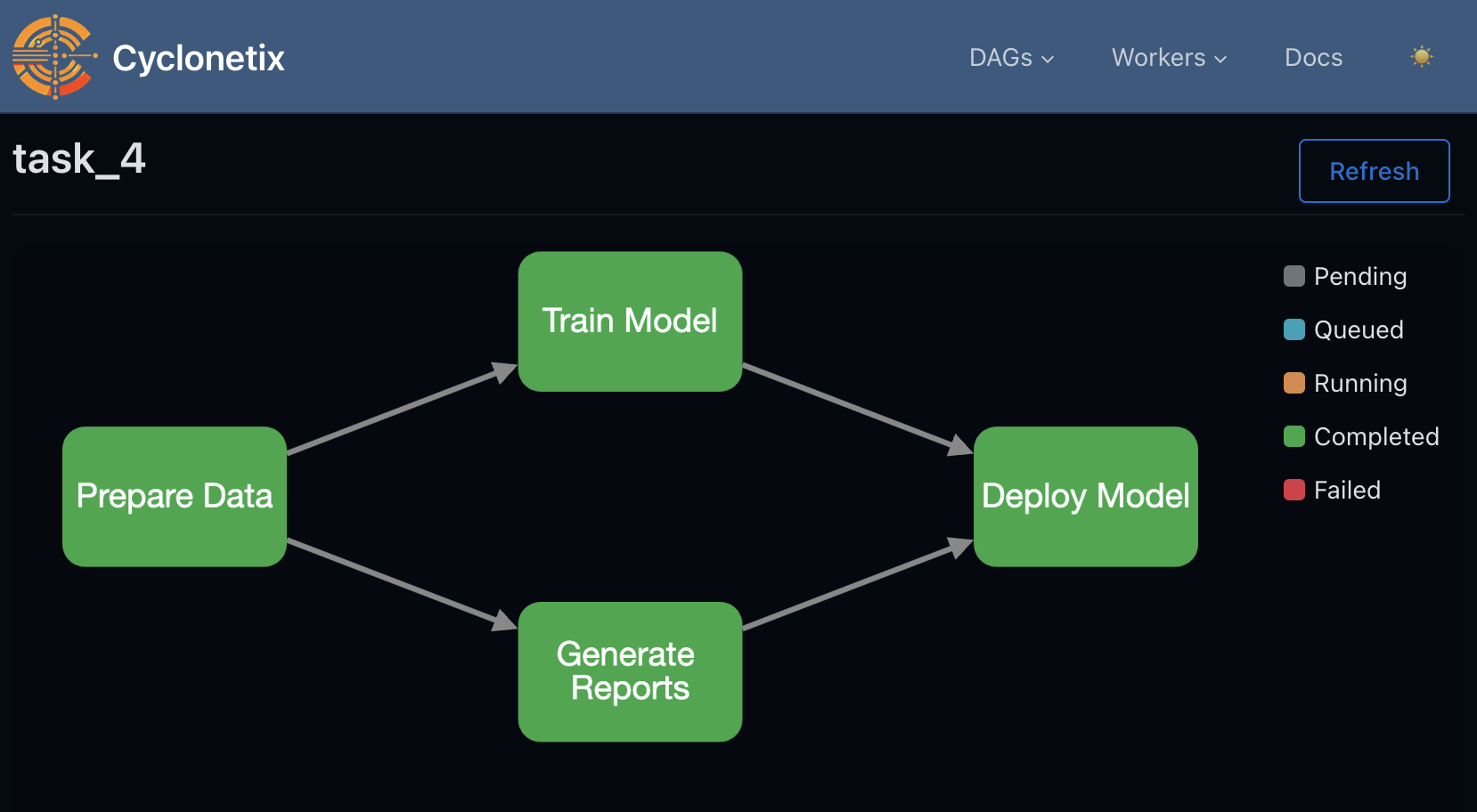

The Cyclonetix UI provides visualization of task dependencies as a graph, making it easy to understand workflow structure:

Dependency Graph Example

Execution Queues

Tasks can be assigned to specific queues, allowing for:

  • Workload categorization
  • Resource allocation
  • Parallel execution across multiple agents
id: "gpu_training"
# ...
queue: "gpu_tasks"

Agents can be configured to listen to specific queues, enabling specialized workers for different task types.
